Price: £222.82
(as of Jan 28, 2025 23:18:57 UTC – Details)

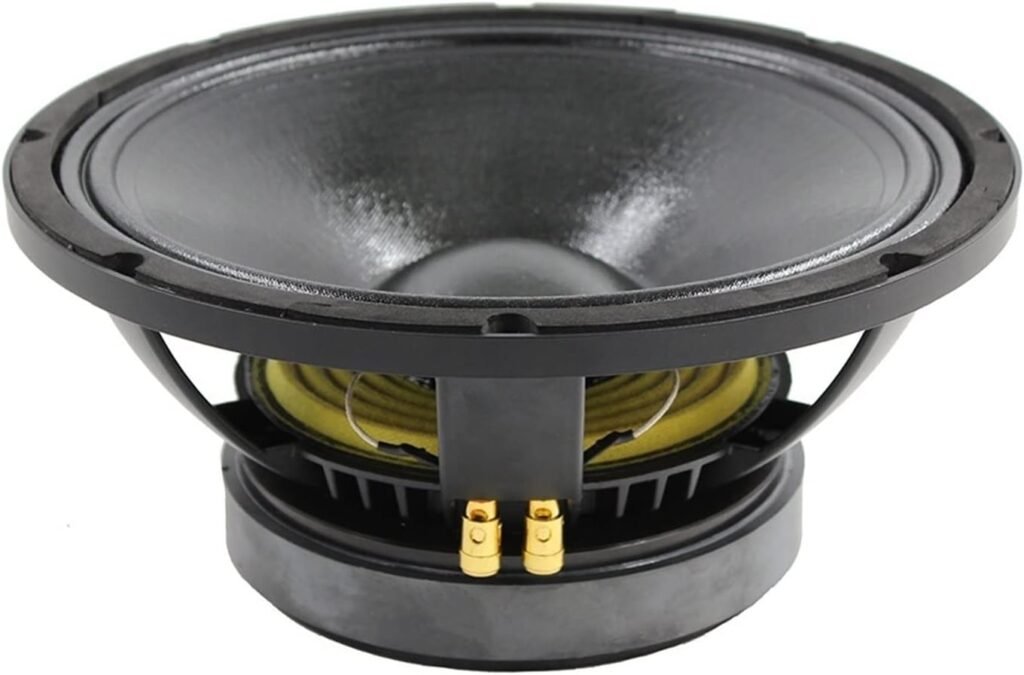

Quality Construction: These speakers are made of a conical carbon fiber material and surrounded by rubber speakers, ensuring durability, minimizing distortion, and providing clear, distortion-free sound reproduction.
GENERAL SPECIFICATIONS
Nominal Diameter:12 Inch
Rated Impedance :8(8±15%)
Power Handling Capacity:600 Watts
Sensitivity 1W 1M:95.3±dB
Effective Piston Diameter:260 mm
Voice Coil Diameter:75.5mm
THIELE-SMALL PARAMENTERS
Resonance Frequency(Fs):53Hz
DC Resistance :(Re) 5.8
Mechanical Q Factor(Qms): 7.647
Electrical Q Factor(Qes): 0.522
Total Q Factor (Qts):0.488
BL Factor (BL):16.799TM
Effective Moving Mass(Mms):59.922gr
Equivalent Cas Air Load(Vas): 37.246liters
Effective Piston Area(Sd): 0.053
Half-Space Efficiency(Eff):2.115 %
Top Palte Thickness(Hag): 10mm
Voice Coil Height: (Hvc) 16 mm
Voice Coil Over-Hung(Xmax):8.0mm
PHYSICAL INFORMATION
Magnet 190×90×25 Ferrite
Voice Coil Winding Material Copper Clad Aluminium
Cone Material Pulp Paper
Overall Diameter 320mm
Baffle Cutout Diameter 278.5mm
Mounting Holes 8 holes 302mm
Total Depth 140mm
Package included:
1PC audio speaker
Lightweight thermoformed polypropylene cone provides high output and accurate frequency reproduction. Butyl rubber enclosure offers durability and deeper mid-bass impact
Sensitivity 1W 1M:95.3±dB
Effective Piston Diameter:260 mm
Voice Coil Diameter:75.5mm
THIELE-SMALL PARAMENTERS
Resonance Frequency(Fs):53Hz
