Price: £60.49
(as of Jan 27, 2025 03:04:40 UTC – Details)
Item Type: Mono power amplifier board
Operating Voltage Range: DC + -55V
Maximum Output Power: 200W / 8Ω, distortion Voltage Magnification: 32 times (normal phase amplification)
Input Sensitivity: 1.6V (effective value)
Input Impedance: 14KΩ
Frequency Response: 0-50KHz ± 1dB
Noise Voltage: 200uV
Dynamic Range:> 100dB

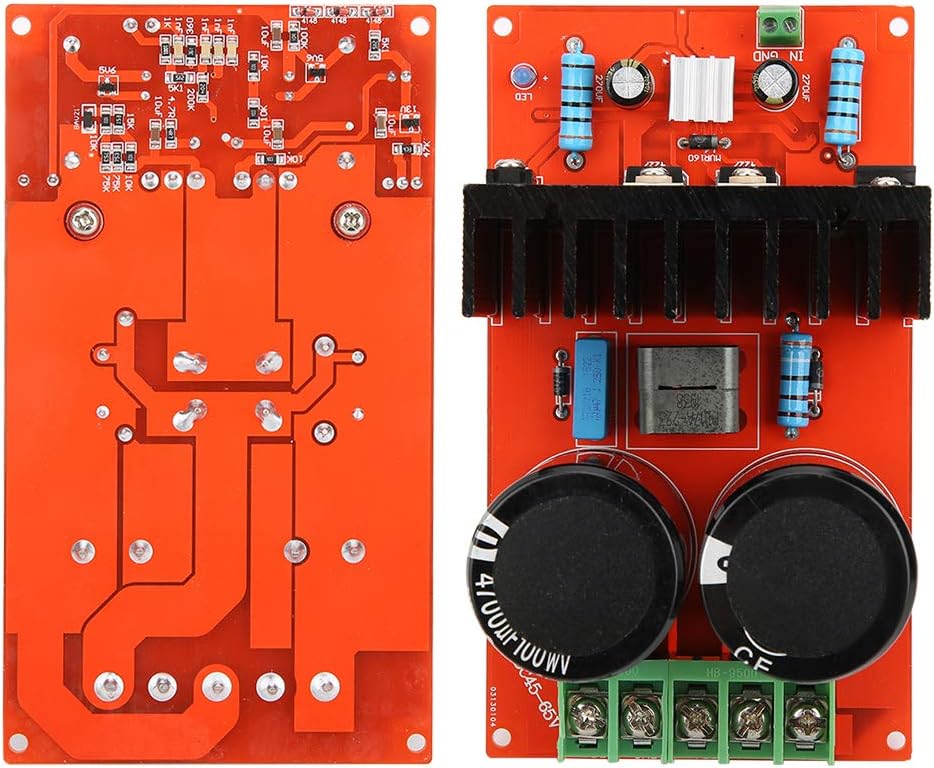

PCB Size: Approx. 133 x 75mm / 5.24 x 2.95in
Weight: Approx. 260 g / 9.2 oz
Package List：
1 x Mono Power Amplifier Board
Package Dimensions : 21 x 13 x 6 cm; 340 g
Date First Available : 29 Dec. 2024
Manufacturer : EVTSCAN
ASIN : B0DRT5LC65
Item model number : EVTSCANx3dpyc5eg1
Country of origin : China
Guaranteed software updates until : unknown
Powerful & Clear Sound: Delivers up to 350W of crisp, distortion-proof audio for 4Ω speakers, providing exceptional sound clarity and depth for any music enthusiast or home theater setup.
Sturdy & Best: Built with high-quality components, including 4700µF capacitors and Accuracy ±1% metal film resistors, ensuring long-lasting performance and stable power delivery for years of best use.
High Performance Design: Features 20A high current shielding inductance, optimizing signal strength and reducing noise for a clean, powerful audio experience that enhances your home audio system.
Wide Frequency Range: Offers a dynamic frequency response of 0-50KHz, ensuring a full spectrum of sound reproduction for crystal-clear highs, rich midtones, and deep bass with minimal distortion.
Easy Installation: Compact 133 x 75mm PCB board simplifies setup with a user-friendly design, suitable for both DIY audio projects and professional-grade installations, providing a easy upgrade to your audio system.
